SEMI-AUTO PALLET WRAPPERS

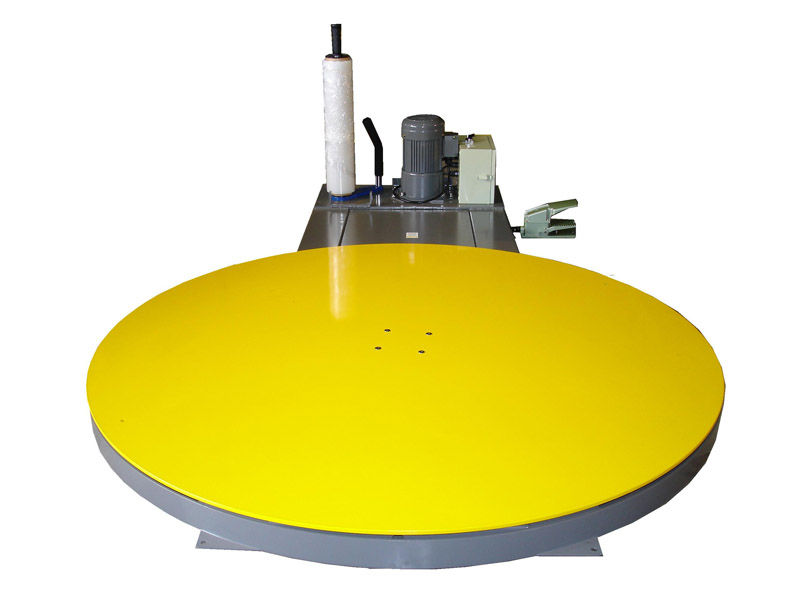

AP-50 TURNTABLE

  • Foot-Switch Control Start and Stop.

  • Adjustable Turntable Speed With Soft Start And Stop

  • Turntable Speed: Max. 12RPM

  • Max. Loading Weight: 2,000KGS

  • AC Motor Controlled by Inverter

  • Emergency Stop

AP-200 (W)

  • Adjustable film tension via electromagnetic brake from panel and the brake rate can reach 100%.

  • Auto film tension relation in order to easy stick the film on next wrapping object.

  • Adjustable automatic photocell load height detection.

  • Security foot guard user protection.

  • E-GO control panel with complete function.

  • Top & Bottom wrapping counter from 0~9 cycles.

  • Turntable speed adjustable 1~12 RPM, soft start & stop.

  • Turntable stops in reset position.

  • Turntable: chain driving.

  • Carriage speed adjustable from 0.5M/min ~ 6M/min.

  • Horseshoe type turntable (dia. 1.6M) for hand truck available

AP-300 (W)

  • Power pre-stretch rate can reach 250% (standard is 200%).

  • Film tension can be adjusted from panel. The digital control system maintains the same tension for different sizes and shape of wrapping objects.

  • Enlarge space for easier film threading. The security door and foot guard installation for operator protection.

  • Adjustable automatic photocell load height protection.

  • Security foot guard user protection.

  • E-GO control panel with complete function.

  • Micro-processor provides 8 different wrapping programs.

  • Top & Bottom wrapping counter from 0~9 cycles.

  • Turntable speed adjustable 1~12 RPM.

  • Inverter for soft start & stop.

  • Turntable stops in reset position.

  • Tunrtable: chain driving

  • Carriage speed adjustable from 0.5M/min ~ 6M/min.

  • Film easy install and threading design

  • Horseshoe type turntable (dia. 1.6M) for hand truck available
